TBTK::Property::Density Class Reference

Property container for density. More...

#include <Density.h>

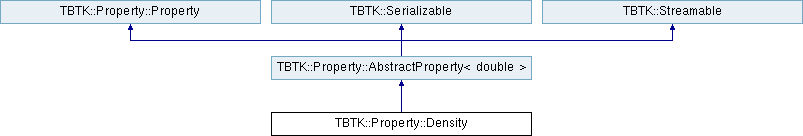

Inheritance diagram for TBTK::Property::Density:

Public Member Functions
	Density ()
	Density (const std::vector< int > &ranges)
	Density (const std::vector< int > &ranges, const double *data)
	Density (const IndexTree &indexTree)
	Density (const IndexTree &indexTree, const double *data)
	Density (const std::string &serialization, Mode mode)
Density &	operator+= (const Density &rhs)
Density	operator+ (const Density &rhs) const
Density &	operator-= (const Density &rhs)
Density	operator- (const Density &rhs) const
Density &	operator*= (const double &rhs)
Density	operator* (const double &rhs) const
Density &	operator/= (const double &rhs)
Density	operator/ (const double &rhs) const
double	getMin () const
double	getMax () const
virtual std::string	toString () const
virtual std::string	serialize (Mode mode) const
Public Member Functions inherited from TBTK::Property::AbstractProperty< double >
unsigned int	getBlockSize () const
unsigned int	getSize () const
const std::vector< double > &	getData () const
std::vector< double > &	getDataRW ()
unsigned int	getDimensions () const
std::vector< int >	getRanges () const
int	getOffset (const Index &index) const
const IndexDescriptor &	getIndexDescriptor () const
bool	contains (const Index &index) const
void	reduce (const std::vector< Index > &targetPatterns, const std::vector< Index > &newPatterns)
void	hermitianConjugate ()
std::vector< SparseMatrix< double > >	toSparseMatrices (const Model &model) const
virtual const double &	operator() (const Index &index, unsigned int offset=0) const
virtual double &	operator() (const Index &index, unsigned int offset=0)
double &	operator() (const std::initializer_list< Subindex > &index)
const double &	operator() (const std::initializer_list< Subindex > &index) const
virtual const double &	operator() (unsigned int offset) const
virtual double &	operator() (unsigned int offset)
void	setAllowIndexOutOfBoundsAccess (bool allowIndexOutOfBoundsAccess)
void	setDefaultValue (const double &defaultValue)
void	replaceValues (const double &targetValue, const double &replacementValue)
virtual std::string	toString () const
Public Member Functions inherited from TBTK::Serializable
template<>
std::string	serialize (const bool &data, Mode mode)
template<>
std::string	serialize (const double &data, Mode mode)
template<>
std::string	serialize (const std::complex< double > &data, Mode mode)
template<>
std::string	serialize (const int &data, Mode mode)
template<>
std::string	serialize (const unsigned int &data, Mode mode)
template<>
std::string	serialize (const SpinMatrix &data, Mode mode)
template<>
std::string	serialize (const Statistics &data, Mode mode)
template<>
std::string	serialize (const std::vector< std::complex< double >> &data, Mode mode)
template<>
int	deserialize (const std::string &serialization, Mode mode)

Friends
Density	operator* (const double &lhs, const Density &rhs)

Additional Inherited Members
Public Types inherited from TBTK::Serializable
enum	Mode { Debug, Binary, XML, JSON }
Static Public Member Functions inherited from TBTK::Serializable
static bool	hasID (const std::string &serialization, Mode mode)
static std::string	getID (const std::string &serialization, Mode mode)
static std::string	extractComponent (const std::string &serialization, const std::string &containerID, const std::string &componentID, const std::string &componentName, Mode mode)
Protected Member Functions inherited from TBTK::Property::AbstractProperty< double >
	AbstractProperty ()
	AbstractProperty (unsigned int blockSize)
	AbstractProperty (unsigned int blockSize, const double *data)
	AbstractProperty (const std::vector< int > &ranges, unsigned int blockSize)
	AbstractProperty (const std::vector< int > &ranges, unsigned int blockSize, const double *data)
	AbstractProperty (const IndexTree &indexTree, unsigned int blockSize)
	AbstractProperty (const IndexTree &indexTree, unsigned int blockSize, const double *data)
	AbstractProperty (const AbstractProperty &abstractProperty)
	AbstractProperty (AbstractProperty &&abstractProperty)
	AbstractProperty (const std::string &serialization, Mode mode)
virtual	~AbstractProperty ()
AbstractProperty &	operator= (const AbstractProperty &abstractProperty)
AbstractProperty &	operator= (AbstractProperty &&abstractProperty)
AbstractProperty &	operator+= (const AbstractProperty &rhs)
AbstractProperty &	operator-= (const AbstractProperty &rhs)
AbstractProperty &	operator*= (const double &rhs)
AbstractProperty &	operator/= (const double &rhs)
Protected Member Functions inherited from TBTK::Property::Property
	Property ()
virtual	~Property ()
Static Protected Member Functions inherited from TBTK::Serializable
static bool	validate (const std::string &serialization, const std::string &id, Mode mode)
static std::string	getContent (const std::string &serialization, Mode mode)
static std::vector< std::string >	split (const std::string &content, Mode mode)
template<typename DataType >
static std::enable_if<!std::is_pointer< DataType >::value, std::string >::type	serialize (const DataType &data, Mode mode)
template<typename DataType >
static std::enable_if< std::is_pointer< DataType >::value, std::string >::type	serialize (const DataType &data, Mode mode)
template<typename DataType >
static DataType	deserialize (const std::string &serialization, Mode mode)
static std::string	extract (const std::string &serialization, Mode mode, std::string component)

Detailed Description

Property container for density.

The Density is a Property with DataType double and is defined for a number of Indices.

Example

#include "TBTK/Models/SquareLattice.h"
#include "TBTK/Property/Density.h"
#include "TBTK/PropertyExtractor/Diagonalizer.h"
#include "TBTK/Solver/Diagonalizer.h"
#include "TBTK/Streams.h"
#include "TBTK/TBTK.h"
#include "TBTK/Visualization/MatPlotLib/Plotter.h"

using namespace TBTK;
using namespace Visualization::MatPlotLib;

int main(){
    Initialize();

    const unsigned int SIZE_X = 10;
    const unsigned int SIZE_Y = 10;
    double t = 1;
    Model model = Models::SquareLattice({SIZE_X, SIZE_Y}, {0, t});
    model.setChemicalPotential(-2);
    model.construct();

    Solver::Diagonalizer solver;
    solver.setModel(model);
    solver.run();

    PropertyExtractor::Diagonalizer propertyExtractor(solver);

    Property::Density density
        = propertyExtractor.calculateDensity({{_a_, _a_}});

    Streams::out << "density({5, 5}) = " << density({5, 5}) << "\n";

    Plotter plotter;

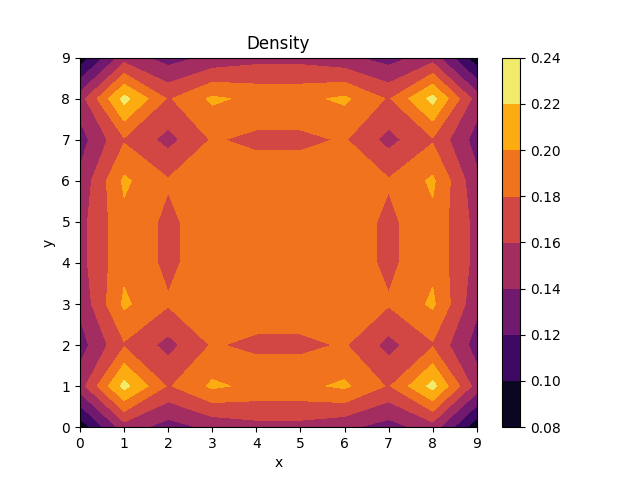

    plotter.plot({_a_, _a_}, density);
    plotter.save("figures/Density.png");

    plotter.clear();

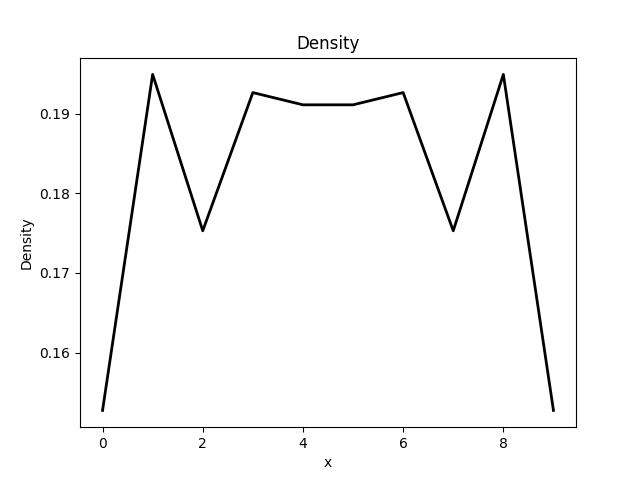

    plotter.plot({_a_, 5}, density);
    plotter.save("figures/DensityCut.png");
}

Output

density({5, 5}) = 0.191111

Constructor & Destructor Documentation

Density() [1/6]

TBTK::Property::Density::Density ( )

inline

Constructs an uninitialized Density.

Density() [2/6]

TBTK::Property::Density::Density

(

const std::vector< int > &

ranges

)

Constructs a Density on the Ranges format. [See AbstractProperty for detailed information about the Ranges format.]

Parameters

ranges

The upper limits (exclusive) for the corresponding dimensions.

Density() [3/6]

TBTK::Property::Density::Density	(	const std::vector< int > &	ranges,
		const double *	data
	)

Constructs a Density on the Ranges format and initializes it with data. [See AbstractProperty for detailed information about the Ranges format and the raw data format.]

Parameters

ranges	The upper limits (exclusive) for the corresponding dimensions.
data	Raw data to initialize the Density with.

Density() [4/6]

TBTK::Property::Density::Density

(

const IndexTree &

indexTree

)

Constructs a Density on the Custom format. [See AbstractProperty for detailed information about the Custom format.]

Parameters

indexTree

IndexTree containing the Indices for which the Density should be contained.

Density() [5/6]

TBTK::Property::Density::Density	(	const IndexTree &	indexTree,
		const double *	data
	)

Constructs a Density on the Custom format. [See AbstractProperty for detailed information about the Custom format and the raw data format.]

Parameters

indexTree	IndexTree containing the Indices for which the Density should be contained.
data	Raw data to initialize the Density with.

Density() [6/6]

TBTK::Property::Density::Density	(	const std::string &	serialization,
		Mode	mode
	)

Constructor. Constructs the Density from a serializeation string.

Parameters

serialization	Serialization string from which to construct the Density.
mode	Mode with which the string has been serialized.

Member Function Documentation

getMax()

double TBTK::Property::Density::getMax

(

)

const

Get maximum value for the Density.

Returns

The maximum value.

getMin()

double TBTK::Property::Density::getMin

(

)

const

Get the minimum value for the Density.

Returns

The minimum value.

operator*()

Density TBTK::Property::Density::operator* ( const double &  rhs ) const

inline

Multiplication operator.

Parameters

rhs	The right hand side of the equation.

Returns

A new Density that is the product of the Density and the right hand side.

operator*=()

Density & TBTK::Property::Density::operator*= ( const double &  rhs )

inline

Overrides AbstractPropertye::operator*=().

operator+()

Density TBTK::Property::Density::operator+ ( const Density &  rhs ) const

inline

Addition operator.

Parameters

rhs	The right hand side of the equation.

Returns

A new Density that is the sum of this Density and the right hand side.

operator+=()

Density & TBTK::Property::Density::operator+= ( const Density &  rhs )

inline

Overrides AbstractPropertye::operator+=().

operator-()

Density TBTK::Property::Density::operator- ( const Density &  rhs ) const

inline

Subtraction operator.

Parameters

rhs	The right hand side of the equation.

Returns

A new Density that is the difference between this Density and the right hand side.

operator-=()

Density & TBTK::Property::Density::operator-= ( const Density &  rhs )

inline

Overrides AbstractPropertye::operator-=().

operator/()

Density TBTK::Property::Density::operator/ ( const double &  rhs ) const

inline

Division operator.

Parameters

rhs	The right hand side of the equation.

Returns

A new Density that is the quotient of the Density and the right hand side.

operator/=()

Density & TBTK::Property::Density::operator/= ( const double &  rhs )

inline

Overrides AbstractPropertye::operator/=().

serialize()

virtual std::string TBTK::Property::Density::serialize ( Mode  mode ) const

virtual

Overrides AbstractProperty::serialize().

Reimplemented from TBTK::Property::AbstractProperty< double >.

toString()

virtual std::string TBTK::Property::Density::toString ( ) const

virtual

Overrides Streamable::toString().

Implements TBTK::Streamable.

Friends And Related Function Documentation

operator*

Density operator* ( const double &  lhs, const Density &  rhs  )

friend

Multiplication operator.

Parameters

lhs	The left hand side of the equation.
rhs	The right hand side of the equation.

Returns

A new Density that is the product of the left hand side and the Density.

---

The documentation for this class was generated from the following file:

• /TBTK/Lib/include/TBTK/Property/Density.h
